Render Bar

$69.14$298.16

Description

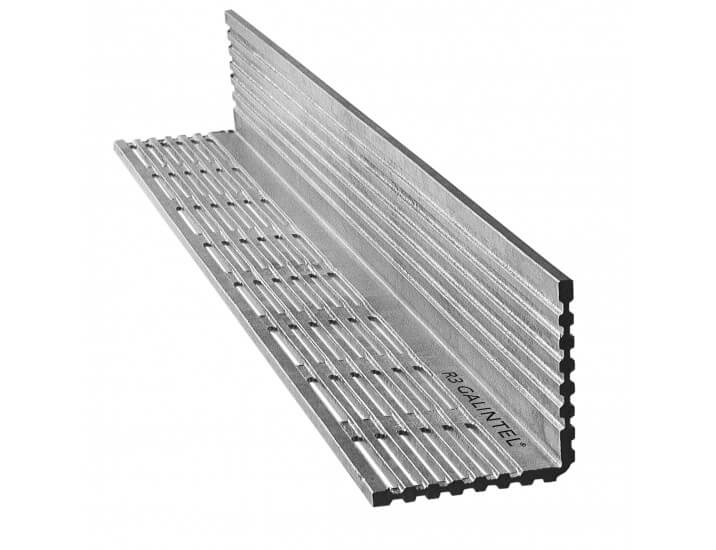

Galintel® Rendabar is a total load-bearing bar, specifically designed to facilitate cement rendering. The bond between mortar, brickwork and lintel forms a composite beam of superior strength and structural rigidity. Galintel® Rendabars are considerably lighter than other forms of lintels, contributing to ease of handling and faster construction.

Application details:

Features 40% lighter than conventional steel lintels with a high strength to weight ratio The bond between mortar, brickwork & lintel forms a composite beam of superior strength & structural rigidity Fully Hot Dip Galvanised to AS/NZS4680 Achieves R3 Durability Rating to AS/NZS2699.3 Compliant with relevant Australian Building Codes & Australian Standards Fully Engineered & University tested Australian designed and manufactured Rendabar Data Sheetr



Additional information

Size

1.2m – 100mm x 100mm x 6mm: 10.11kg, 1.8m – 100mm x 100mm x 9mm: 15.17kg, 2.1m – 100mm x 100mm x 9mm: 17.70kg, 2.4m – 100mm x 100mm x 9mm: 20.23kg, 2.7m – 150mm x 150mm x 9mm: 28.97kg, 3.0m – 150mm x 150mm x 6mm: 32.19kg, 3.3m – 150mm x 150mm x 6mm: 35.41kg, 3.6m – 150mm x 150mm x 6mm: 38.63kg, 4m – 100mm x 100mm x 6mm: 42.92kg
