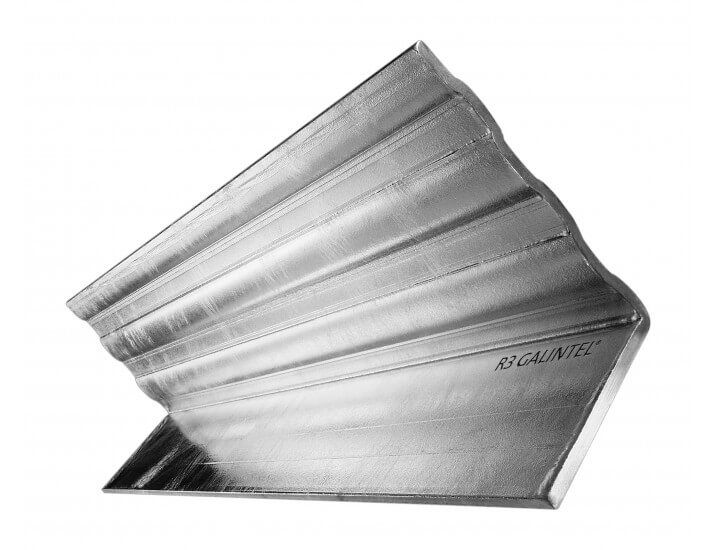

Galintel Galvanised Angle Bar

$46.65$199.78

Description

Galintel® Solid Base angles have been designed to support brickwork over windows & doors. The brickwork, mortar and lintel work together to form a composite beam with exceptional strength and load-carrying capacity. Genuine Galintel® hot dip galvanized lintels are 40% lighter than solid lintels (and 40% easier to carry) with a high strength to weight ratio.

Application details:

Features: The original & unique profile provides a recess for mortar bedding on the vertical leg. The bonding of mortar, brickwork & steel lintel forms a composite beam of superior strength and load bearing capacity 40% lighter than conventional steel lintels with a high strength to weight ratio. Fully Hot Dip Galvanised to AS/NZS4680 Achieves R3 Durability Rating to AS/NZS2699.3 Compliant with relevant Australian Building Codes & Australian Standards Fully engineered and University tested Australian designed and manufactured Galintel Data Sheet

Additional information

Size

1.2m – 100mm x 100mm x 6mm: 10.11kg, 1.5m – 100mm x 100mm x 3mm: 12.65kg, 1.8m – 100mm x 100mm x 9mm: 15.17kg, 2.1m – 100mm x 100mm x 6mm: 17.70kg, 2.4m – 100mm x 100mm x 2mm: 20.23kg, 2.4m – 150mm x 150mm x 8mm: 25.75kg, 2.7m – 150mm x 150mm x 8mm: 28.97kg, 3.0m – 150mm x 150mm x 8mm: 32.19kg, 3.3m – 150mm x 150mm x 8mm: 35.41kg, 3.6m – 150mm x 150mm x 8mm: 38.63kg, 4.0m – 150mm x 150mm x 7mm: 42.92kg
